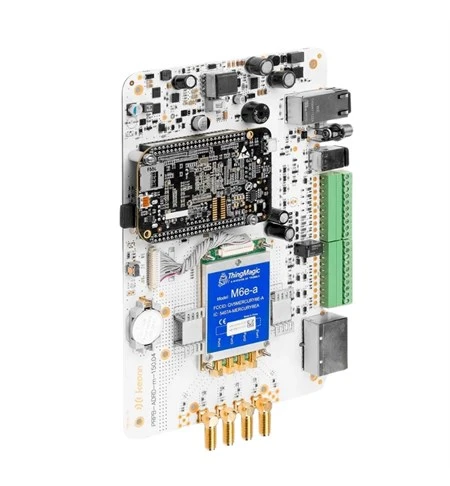

Keonn AdvanReader-160 RFID Reader - 4 Ports
The Keonn ADRD-M4-SMA-160 is a high-performance UHF RFID reader with four straight SMA ports and Power over Ethernet (PoE) support. It features an integrated Linux microcomputer, enabling stand-alone operation without the need for an external PC, which helps reduce installation and maintenance costs.
Designed with mobile applications in mind, the AdvanReader-160 supports battery operation, includes battery level monitoring, and offers a sleep mode to minimise power consumption. It can control up to 1,024 antennas when used with Keonn multiplexers, providing a highly scalable solution for complex RFID environments.
The unit offers extensive input/output capabilities, including digital and analogue inputs, multiple digital outputs, direct LED connections, GPO lines, a relay-enabled output, and an integrated loudspeaker. Two RJ45 ports are included for direct multiplexer control, making it ideal for advanced, flexible RFID installations.
- High-power UHF RFID reader with 31.5 dBm output
- Four antenna ports
- Integrated microcomputer with open
- Linux operating system
- Operates stand-alone without external PC
- Battery-ready with battery level monitoring
- Sleep mode for reduced power consumption
- Controls up to 1,024 antennas via Keonn multiplexers
- 2 RJ45 connectors for multiplexer management
